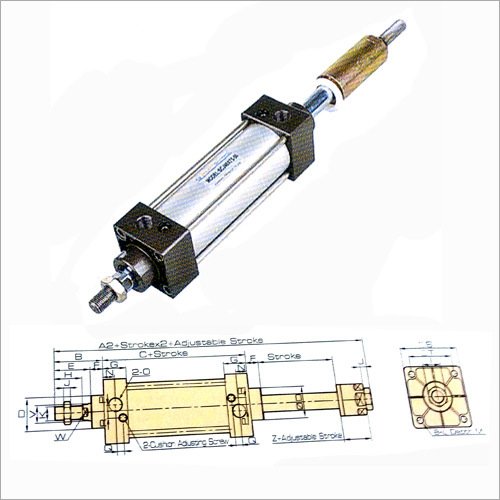

Pneumatic Standard Cylinder

A Pneumatic Standard Cylinder designed for linear motion and actuation in pneumatic machinery and industrial automation applications. It operates using compressed air and is available in different bore and stroke configurations according to application requirements.

Key Features

Double acting operation
Compressed-air operated
Robust cylindrical construction
Suitable for industrial automation applications
Multiple bore and stroke options
Adjustable cushioning available on applicable series
Suitable for different mounting configurations

Specifications

Specification	Details
Operation	Double Acting
Working Medium	Air
Bore	32–320 mm*
Pressure Range	1–9.0 Kgf/cm²
Proof Pressure	13.5 Kgf/cm²
Speed Range	50–800 mm/s
Temperature Range	-20°C to 70°C
Application	Industrial Automation / Machinery

*The 32–320 mm range is from the Surya Automation TradeIndia listing; exact available sizes should be confirmed against the client’s current stock/catalogue before publishing.

Pneumatic Standard Cylinder is used to convert compressed-air energy into controlled linear motion. It can be used in pneumatic machinery and industrial automation systems where reliable linear actuation is required.

The cylinder is available in different configurations and dimensional options, allowing selection according to the required bore, stroke, mounting arrangement and operating conditions. JELPC’s documented SC/SU standard-cylinder series, for example, supports multiple bore sizes and stroke configurations with double-acting operation and adjustable cushioning.
